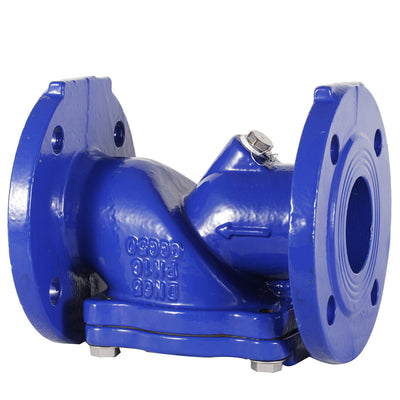

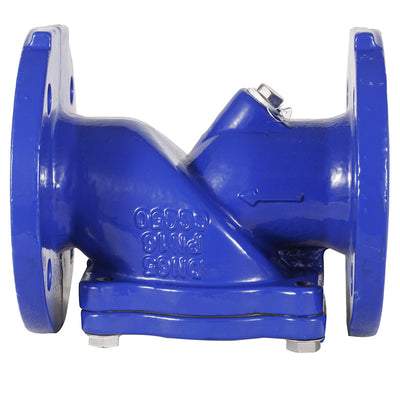

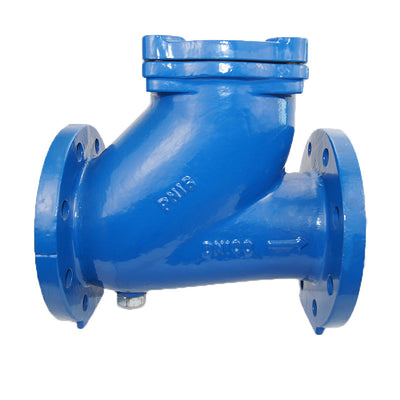

Ball Type Check Valve Introduction

Ball check valve is a kind of check valve with multi-ball, multi-runner and multi-cone inverted fluid structure, which is mainly composed of front and rear valve body, rubber ball, cone body and so on.

Its working principle is: the rubber ball in the ball cover for a short trip rolling to realize the opening and closing of the valve. When the pump starts, the water under the action of pressure to open the rubber ball, so that the rubber ball rolled to the right, by the back of the valve body in the cone body to fix its position, the check valve is open; pump stops, due to the piping system in the backwater pressure, forcing the rubber ball rolled to the left side of the front valve body, to achieve the closure of the check valve. The rubber ball is made of hollow steel ball, and the rubber with good elasticity is used to ensure the sealing and reduce the damage to the pipeline system in the process of closing the valve. Cone with holes in the valve when the valve is opened on the steel ball to play a fixed role and eliminate the rubber ball and cone contact area of the pressure, so that the contact for the surface contact, reducing the rubber ball in the valve body of the hydraulic loss caused by trembling.

This valve is made with strong and durable materials, ensuring long-lasting performance. Its ball design allows for a tight seal and prevents any backflow, keeping your system running smoothly. Trust the expertise and quality of this valve to secure your system's functionality.

Ball Type Check Valve Drawing

Standard of implementation

Category	Details
Type	Flange
Face to Face	API609, BS5155, DIN3202, ISO5752
Flange	DIN, BS, UNI, ISO, ANSI, AS, JIS
Mounting Flange	ISO5211
Working Pressure	PN16 (200PSI)
Application	HVAC, Water Supply & Sewage, Food & Beverage, Chemical/ Petrochemical Processing, Power and Utilities, Paper and Pulp, Ship Building

Standard Materials Of Main Parts

ITEM	PART NAME	MATERIAL
1	Body	DI
2	Bonnet	DI
3	Bolt	CS
4	Bolt	EPDM

Dimensions:(mm)

DN	F6	Pn10				Pn16
DN	L	D	D1	D2	n-Ød	D	D1	D2	n-Ød
50	200	165	125	102	4-18	165	125	102	4-18
65	240	185	145	122	4-18	185	145	122	4-18
80	260	200	160	138	8-18	200	160	138	8-18
100	300	220	180	158	8-18	220	180	158	8-18
125	350	250	210	188	8-18	250	210	188	8-18
150	400	285	240	212	8-23	285	240	212	8-23
200	500	340	295	268	8-23	340	295	268	12-23
250	600	395	350	320	12-23	405	355	320	12-27
300	700	445	400	370	12-23	460	410	378	12-27
350	800	505	460	430	16-23	520	470	438	16-27
400	900	565	515	482	16-27	580	525	490	16-30
450	1000	615	565	530	20-27	640	585	550	20-30
500	1100	670	620	585	20-27	715	650	610	20-33
600	1300	780	725	685	20-30	840	770	725	20-36
