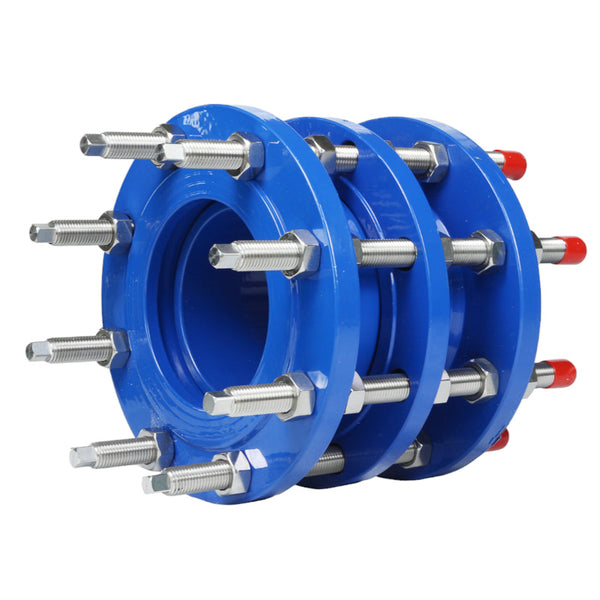

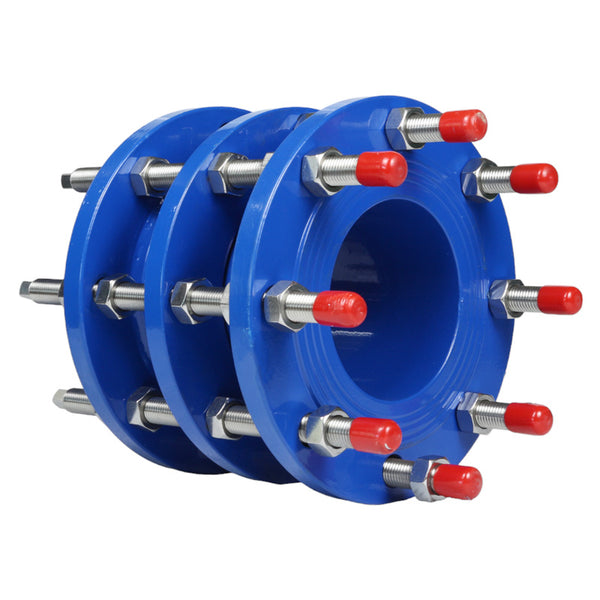

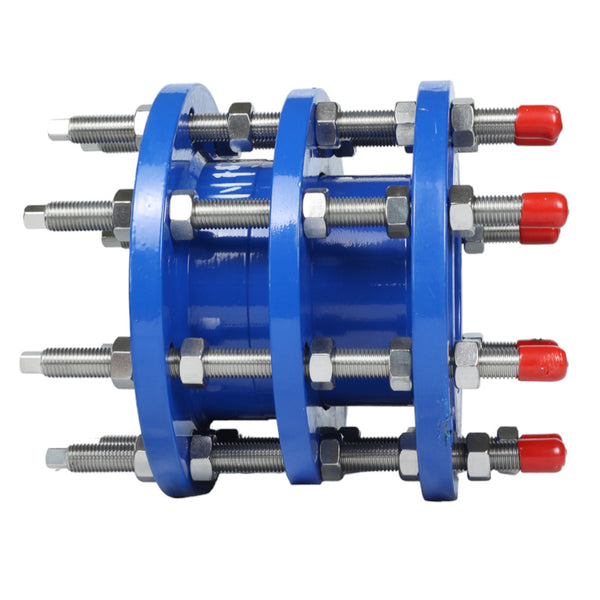

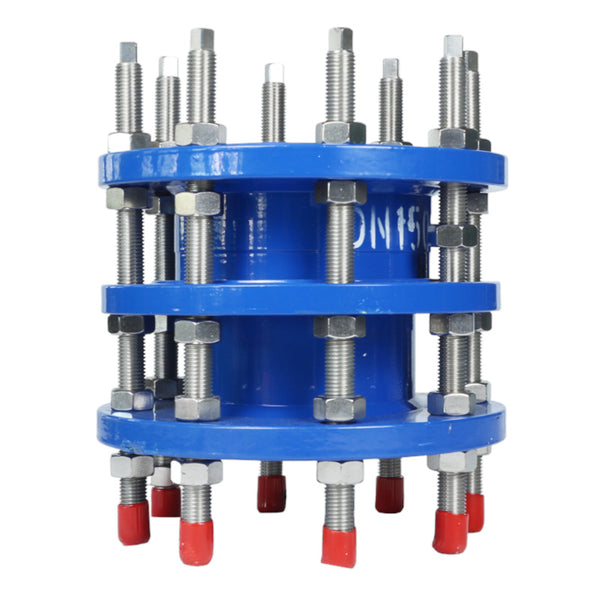

Dismantling Jiont Introduction
The Dismantling Joint is a highly efficient and versatile solution for connecting pipes of different materials and sizes. Its unique design provides easy installation and dismantling, saving time and resources. Made with durable materials, it offers long-term reliability and cost-effectiveness. Upgrade your piping system with the Dismantling Joint for maximum performance.
Dismantling Jiont Drawing
Standard of Implementation
| Category | Details |
|---|---|
| Type | Flange |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical/petrochemical/processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | FLANGE | Carbon Steel |
| 2 | SEALING RING | NBR |
| 3 | GLAND | Carbon Steel |
| 4 | PIPE | Carbon Steel |
| 5 | BOLT | Carbon Steel 8.8 GRADE |
Dimensions:(mm)
| Size | D | K | n x d | D | D |
| Dn50 | 160 | 125 | 4*18 | 200 | ±20 |
| Dn65 | 180 | 145 | 4*18 | 200 | ±20 |
| Dn80 | 195 | 160 | 4*18 | 200 | ±20 |
| Dn100 | 215 | 180 | 8*18 | 200 | ±20 |
| Dn125 | 245 | 210 | 8*18 | 200 | ±20 |
| Dn150 | 280 | 240 | 8*23 | 200 | ±20 |
| Dn200 | 335 | 195 | 12*23 | 200 | ±20 |
| Dn225 | 365 | 325 | 12*23 | 200 | ±20 |
| Dn250 | 405 | 355 | 12*26 | 200 | ±20 |
| Dn300 | 460 | 410 | 16*26 | 220 | ±25 |
| Dn350 | 520 | 470 | 16*26 | 220 | ±25 |
| Dn400 | 580 | 525 | 16*30 | 220 | ±25 |
| Dn450 | 640 | 585 | 20*30 | 220 | ±25 |
| Dn500 | 715 | 650 | 20*34 | 220 | ±25 |
| Dn600 | 840 | 770 | 20*36 | 240 | ±25 |
| Dn700 | 910 | 840 | 24*36 | 240 | ±25 |
| Dn800 | 1025 | 950 | 24*39 | 350 | ±30 |
| Dn900 | 1125 | 1050 | 28*39 | 350 | ±30 |
| Dn1000 | 1255 | 1170 | 28*42 | 350 | ±30 |
| Dn1200 | 1485 | 1390 | 32*48 | 370 | ±30 |
| Dn1400 | 1685 | 1590 | 36*48 | 370 | ±30 |
| Dn1600 | 1930 | 1820 | 40*55 | 380 | ±30 |
| Dn1800 | 2130 | 2100 | 44*55 | 380 | ±30 |
| Dn2000 | 2345 | 2230 | 48*60 | 400 | ±30 |
REVIEWS
Download
FAQs
What is a rubber expansion joint?
A rubber expansion joint is a flexible connector made of rubber that is used to absorb movement, vibration, and thermal expansion in piping systems.
What are the main applications of rubber expansion joints?
They are commonly used in HVAC systems, water and wastewater treatment plants, chemical processing, power generation, and industrial piping systems.
What are the benefits of using rubber expansion joints?
They provide flexibility, reduce noise and vibration, compensate for misalignment, absorb thermal expansion, and protect equipment from stress and wear.
How to use a rubber expansion joint
When installing a rubber expansion joint, you need to select the right joint for your system, make sure the pipes are clean and aligned, and connect them between flanges. Tighten the bolts evenly in a star pattern, ensure proper movement allowance, check for stress and leaks, and perform regular maintenance inspections.
