Wafer Butterfly Valve with Valve Plate Spray Painting(Throught Shaft Without Pin)
Interested in high volume or commercial orders?Contact us today to request a quote and learn about our benefits！
Quality Assurance
We have a dedicated quality control team and advanced testing equipment to ensure consistent product quality.
Timely Delivery
With reliable raw material suppliers and streamlined production processes, we guarantee on-time delivery.
Excellent After-Sales Service
Our team of valve experts provide impeccable after-sales support
Certifications
Our products hold up to 10 international authoritative certification certificates, ensuring compliance with global standards.
PRODUCT DETAILS

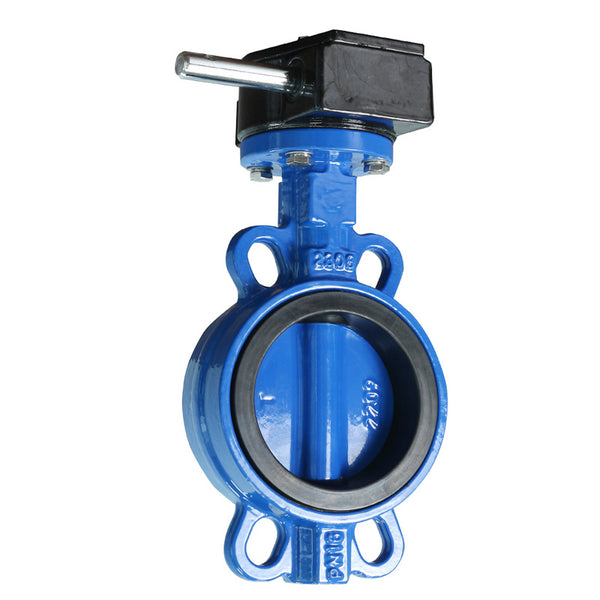

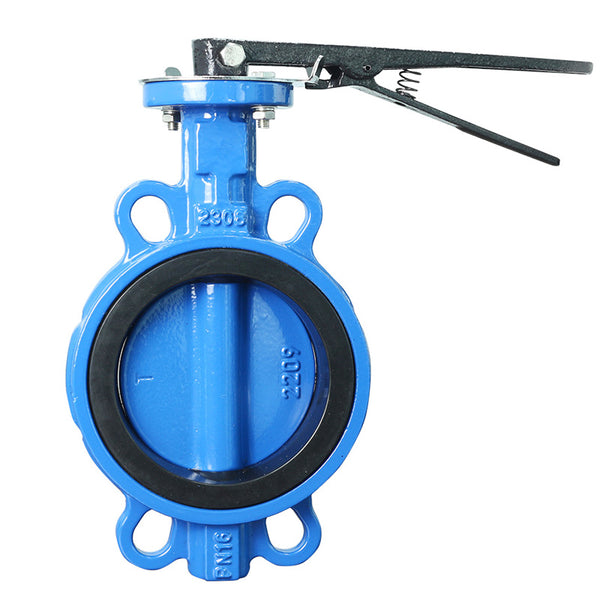

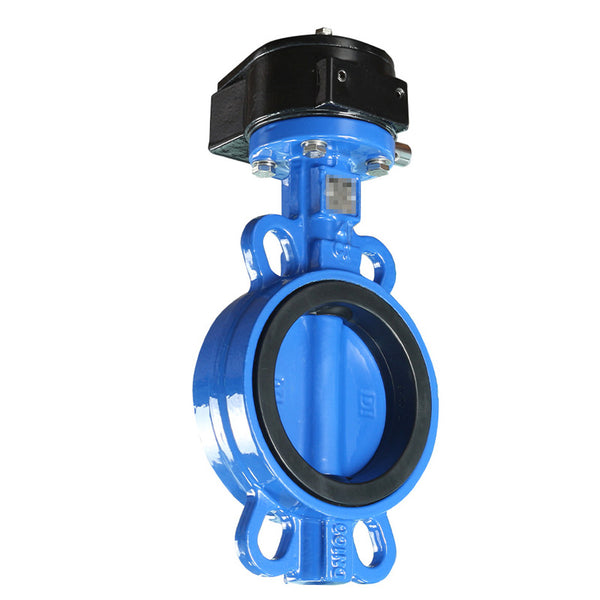

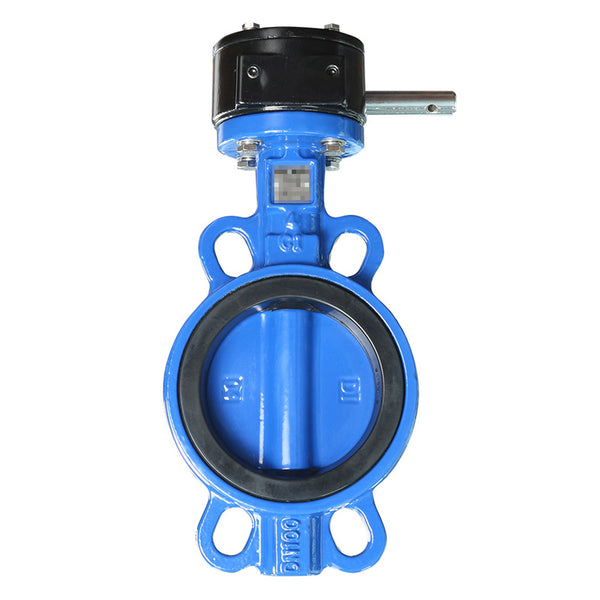

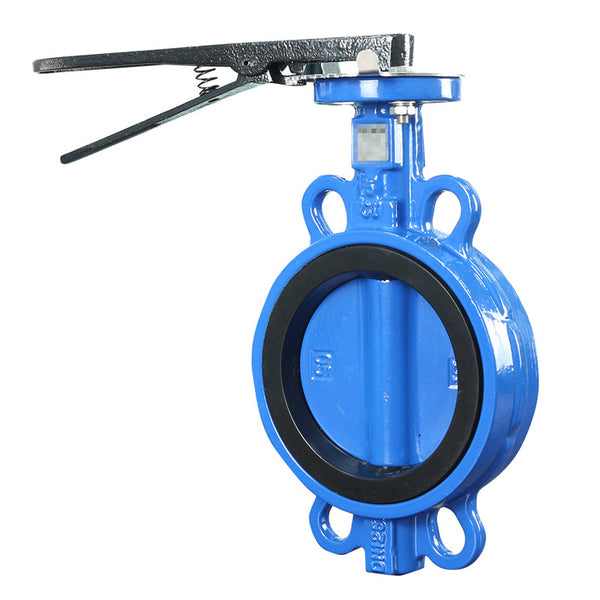

Cast Iron Wafer Butterfly Valve Introduction
This cast iron wafer butterfly valve with valve plate spray painting is a durable and versatile valve that is perfect for a variety of industrial applications. Made from high-quality cast iron, this valve is corrosion-resistant and has a long lifespan. The valve plate spray painting further enhances its durability while providing a smooth and efficient flow control. Trust in the reliability and efficiency of this valve for all your industrial needs.
Cast Iron Wafer Butterfly Valve Drawing
Standard of Implementation
| Category | Details |
|---|---|
| Type | Wafer |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| Item | Part Name | Material |
|---|---|---|
| 1 | Body | CI/DI/CS/SS Etc. |
| 2 | Seat | EPDM/PTFE/VITON/NBR/Hypalon Etc. |
| 3 | Shaft | SS416/316/304 Etc. |
| 4 | Disc | CF8/CF8M/D1+Ni Etc. |
| 5 | Pin | SS304/SS316 |
| 6 | Bushing | PTFE/Bronze |
| 7 | O Ring | NBR/EPDM |
Dimensions:(mm)
