Carbon Steel Flange
Interested in high volume or commercial orders?Contact us today to request a quote and learn about our benefits！
Quality Assurance
We have a dedicated quality control team and advanced testing equipment to ensure consistent product quality.
Timely Delivery
With reliable raw material suppliers and streamlined production processes, we guarantee on-time delivery.
Excellent After-Sales Service
Our team of valve experts provide impeccable after-sales support
Certifications
Our products hold up to 6+ international authoritative certification certificates, ensuring compliance with global standards.
PRODUCT DETAILS

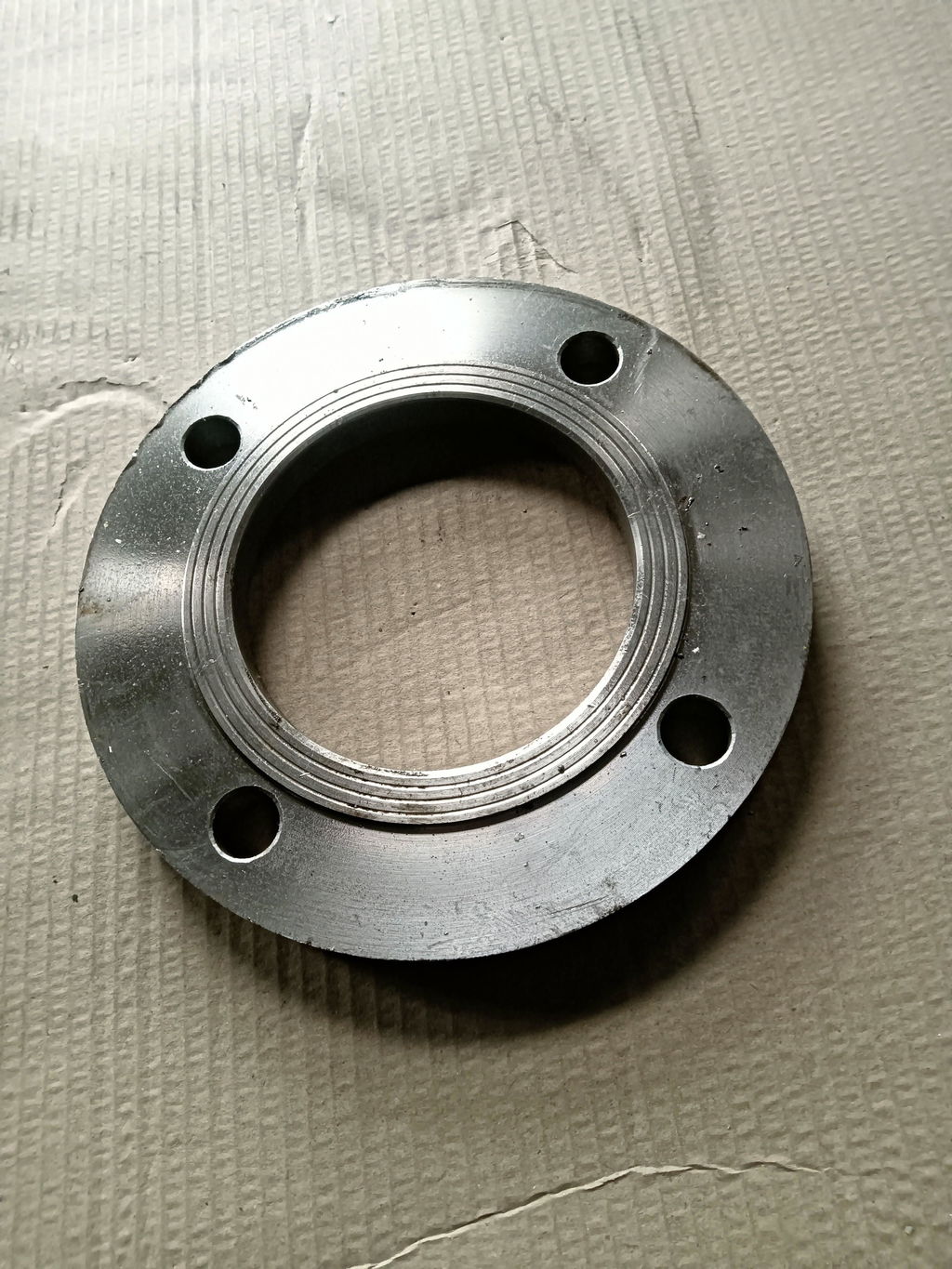

Carbon Steel Flange Introduction
This Carbon Steel Flange is an essential component for securely connecting pipes or adding attachments to structures. With its strong and durable design, it provides a reliable seal to prevent leaks and ensure long-lasting performance. Its versatility allows for easy installation and compatibility with various pipe sizes. Upgrade your piping system with this reliable Flange.
Carbon Steel Flange Drawing
Standard of Implementation
| Property | Details |
|---|---|
| Nominal Pressure | PN1.0MPa, PN1.6MPa |
| Standard | GB/T9119-2000 |
| Material | WCB |
Dimensions:(mm)
PN16
| Size | D | D1 | nxd |
|---|---|---|---|
| Dn50 | 165 | 125 | 4X18 |
| Dn65 | 185 | 145 | 8X18 |
| Dn80 | 200 | 160 | 8X18 |
| Dn100 | 220 | 180 | 8X18 |
| Dn125 | 250 | 210 | 8X18 |
| Dn150 | 285 | 240 | 8X22 |
| Dn200 | 340 | 295 | 12X26 |
| Dn250 | 405 | 355 | 12X26 |
| Dn300 | 460 | 410 | 16X26 |
| Dn350 | 520 | 470 | 16X26 |
| Dn400 | 580 | 525 | 16X30 |
| Dn450 | 640 | 585 | 20X30 |
| Dn500 | 715 | 650 | 20X30 |
| DN600 | 840 | 770 | 20X36 |
PN10
| Size | D | D1 | nxd |
|---|---|---|---|
| Dn50 | 165 | 125 | 4X18 |
| Dn65 | 185 | 145 | 8X18 |
| Dn80 | 200 | 160 | 8X18 |
| Dn100 | 220 | 180 | 8X18 |
| Dn125 | 250 | 210 | 8X18 |
| Dn150 | 285 | 240 | 8X22 |
| Dn200 | 340 | 295 | 8X22 |
| Dn250 | 395 | 350 | 12X22 |
| Dn300 | 445 | 400 | 12X22 |
| Dn350 | 505 | 460 | 16X22 |
| Dn400 | 465 | 515 | 16X26 |
| Dn450 | 615 | 565 | 20X26 |
| Dn500 | 670 | 620 | 20X26 |
| DN600 | 780 | 725 | 20X30 |
REVIEWS
Customer Reviews
Fortunately, I found a reliable supplier, which didn't cause me any loss, his price was within my expectation, and I was satisfied with the quality, so I think this is a very reliable supplier.
Machining is precise, finishing is very good. Can improve on paintjob but i am satisfied & very happy with products i received.
The samples arrived in good time and allow us to test and trial as to the suitability of our requirement. Very helpful as we investigate this project.
Download
FAQs
How can I get technical assistance?
Contact our technical team for support with valve selection, materials, standards, dimensions, installation, or operating conditions. Please include your application details so we can provide an accurate recommendation.
What information is required for valve selection or a quotation?
Please provide the medium, nominal size (DN/NPS), operating pressure and temperature, connection standard, preferred materials, actuation method, quantity, and any certification or testing requirements.
Can you provide drawings, certificates, and test documentation?
Yes. Depending on the product and order requirements, we can provide technical datasheets, dimensional drawings, material certificates, inspection records, and pressure or leakage test documentation. Confirm the required documents when requesting a quotation.
