Lug Butterfly Valve
Price shown for single unit · For bulk & project orders, Contact us for factory pricing
Quality Assurance
We have a dedicated quality control team and advanced testing equipment to ensure consistent product quality.
Timely Delivery
With reliable raw material suppliers and streamlined production processes, we guarantee on-time delivery.
Excellent After-Sales Service
Our team of valve experts provide impeccable after-sales support
Certifications
Our products hold up to 10 international authoritative certification certificates, ensuring compliance with global standards.
PRODUCT DETAILS

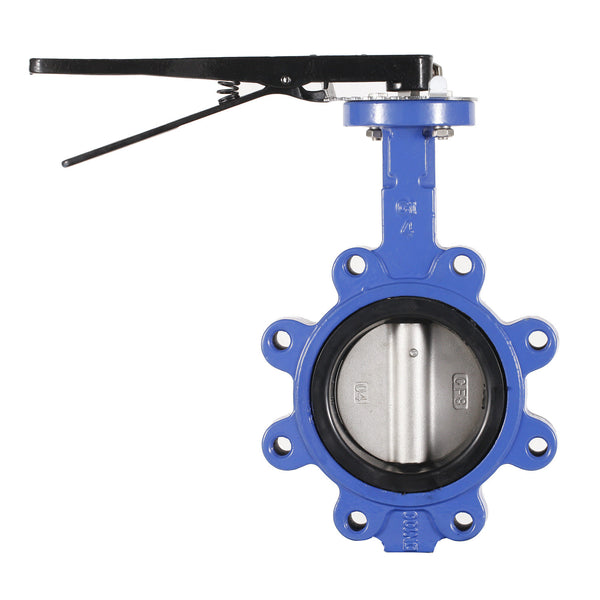

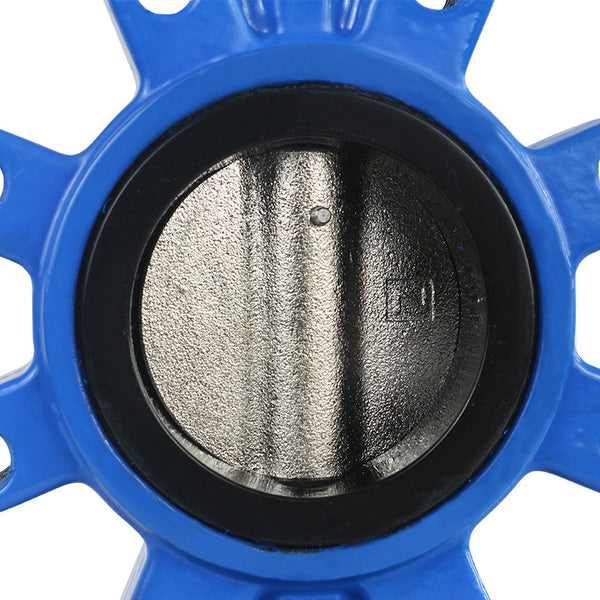

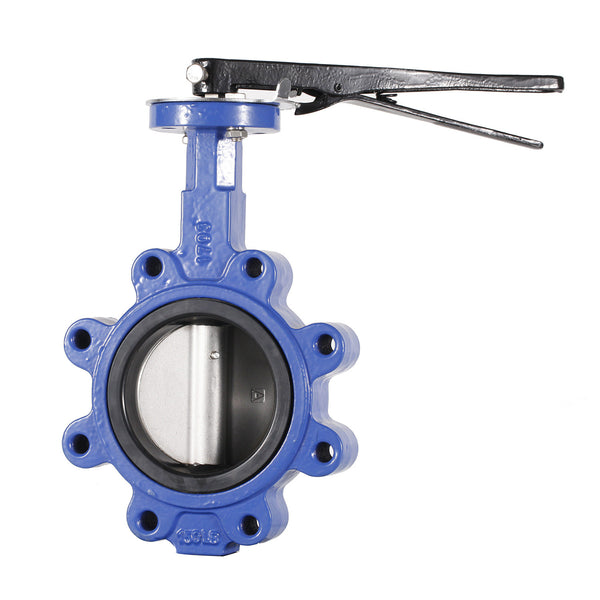

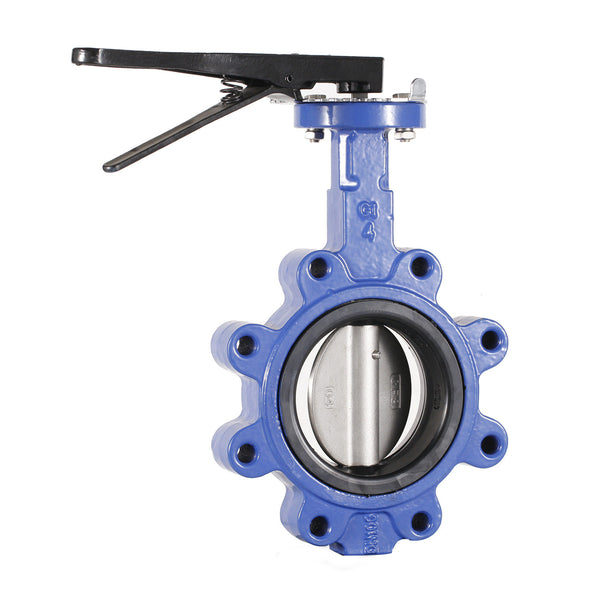

Lug Butterfly Valve — Product Description
This lug butterfly valve combines a rubber-sealed body with a carbon steel or stainless steel valve plate and stem, purpose-built for demanding industrial environments. It is suitable for temperatures up to 80–120°C and is widely used across food processing, pharmaceutical, chemical, petroleum, power generation, textile, and papermaking industries — as well as modern data center chilled water systems and AI server cooling circuits — for precise flow regulation and medium shutoff in water supply, drainage, and gas pipelines.
Key Features:
- Innovative, compact design with a lightweight structure for rapid opening and closing.
- Low operating torque — smooth, effortless control even in high-cycle data center cooling valve applications.
- Flexible installation in any orientation, with minimal maintenance requirements.
- Replaceable seals with reliable bi-directional zero-leakage sealing performance.
- Sealing materials offer excellent aging resistance and corrosion resistance, ensuring long service life — ideal for the continuous-duty demands of data center chilled water valves and AI server cooling infrastructure.
Lug Butterfly Valve drawing
Standard of Implementation
| Category | Details |
|---|---|
| Type | Lugged |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200 PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical/petrochemical/processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CI/DI/CS/SS |
| 2 | Seat | EPDM/PTFE/VITON/NBR/Hypalon |
| 3 | Shaft | SS416/316/304/CS |
| 4 | Disc | CF8/CF8M/DI/Ni/SS304 |
| 5 | Pin | SS |
| 6 | Bushing | PTFE/Bronze |
| 7 | O Ring | NBR/EPDM |
Dimensions:(mm)
