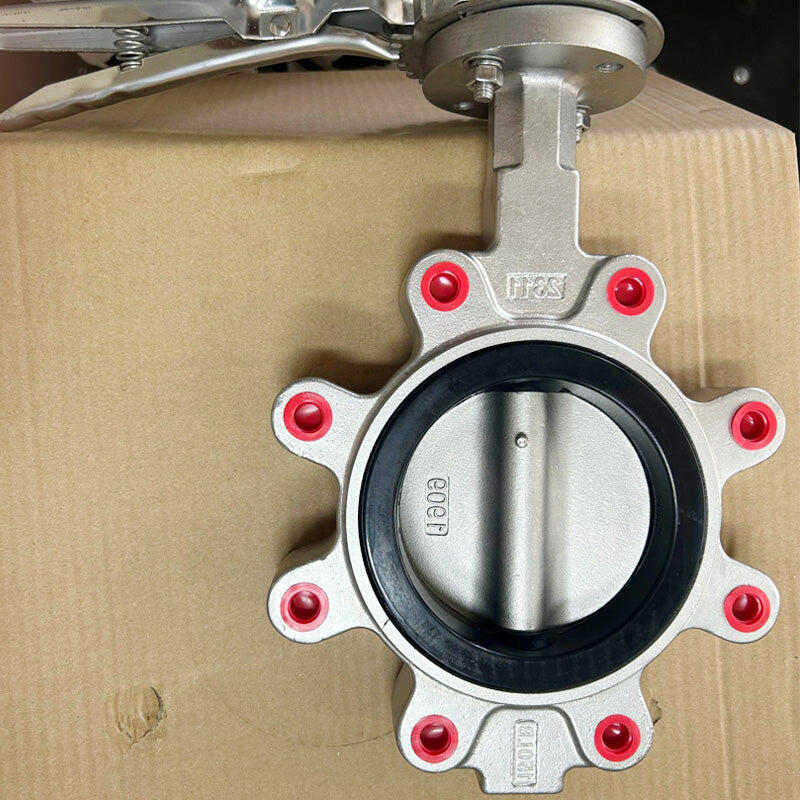

Stainless Steel Lug Butterfly Valve
Prices reflect current material costs. For alternative grades or materials, please contact us for customized solutions and accurate pricing.
Quality Assurance
We have a dedicated quality control team and advanced testing equipment to ensure consistent product quality.
Timely Delivery
With reliable raw material suppliers and streamlined production processes, we guarantee on-time delivery.
Excellent After-Sales Service
Our team of valve experts provide impeccable after-sales support
Certifications
Our products hold up to 10 international authoritative certification certificates, ensuring compliance with global standards.
PRODUCT DETAILS
Stainless steel lug butterfly valve Introduction
This stainless steel lug butterfly valve is a durable and reliable option for controlling flow in your system. Its high-quality stainless steel construction ensures longevity and corrosion resistance. With its innovative design, this valve provides efficient and precise control while minimizing pressure drop. Upgrade your system with this industry-leading valve.
- novel design, reasonable, unique structure, light weight, rapid opening and closing.
- Small operating torque, easy to operate, labor-saving dexterity.
- It can be installed in any position, easy maintenance.
- the seal can be replaced, sealing performance is reliable to achieve two-way sealing zero leakage.
- sealing material aging resistance, weak corrosion resistance, long service life and other characteristics.
Stainless steel lug butterfly valve Drawing
Standard of Implementation
| Category | Details |
|---|---|
| Type | Lugged |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200 PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical/petrochemical/processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CI/DI/CS/SS |
| 2 | Seat | EPDM/PTFE/TON/NBR/Hypalon |
| 3 | Shaft | SS416/316/304/CS |
| 4 | Disc | CF8/CF8M/DI/Ni/SS304 |
| 5 | Pin | SS |
| 6 | Bushing | PTFE/Bronze |
| 7 | O Ring | NBR/EPDM |
Dimensions:(mm)
