Non-Rising Stem Resilient Seated Gate Valve
Interested in high volume or commercial orders?Contact us today to request a quote and learn about our benefits！
Quality Assurance
We have a dedicated quality control team and advanced testing equipment to ensure consistent product quality.
Timely Delivery
With reliable raw material suppliers and streamlined production processes, we guarantee on-time delivery.
Excellent After-Sales Service
Our team of valve experts provide impeccable after-sales support
Certifications
Our products hold up to 10 international authoritative certification certificates, ensuring compliance with global standards.
PRODUCT DETAILS

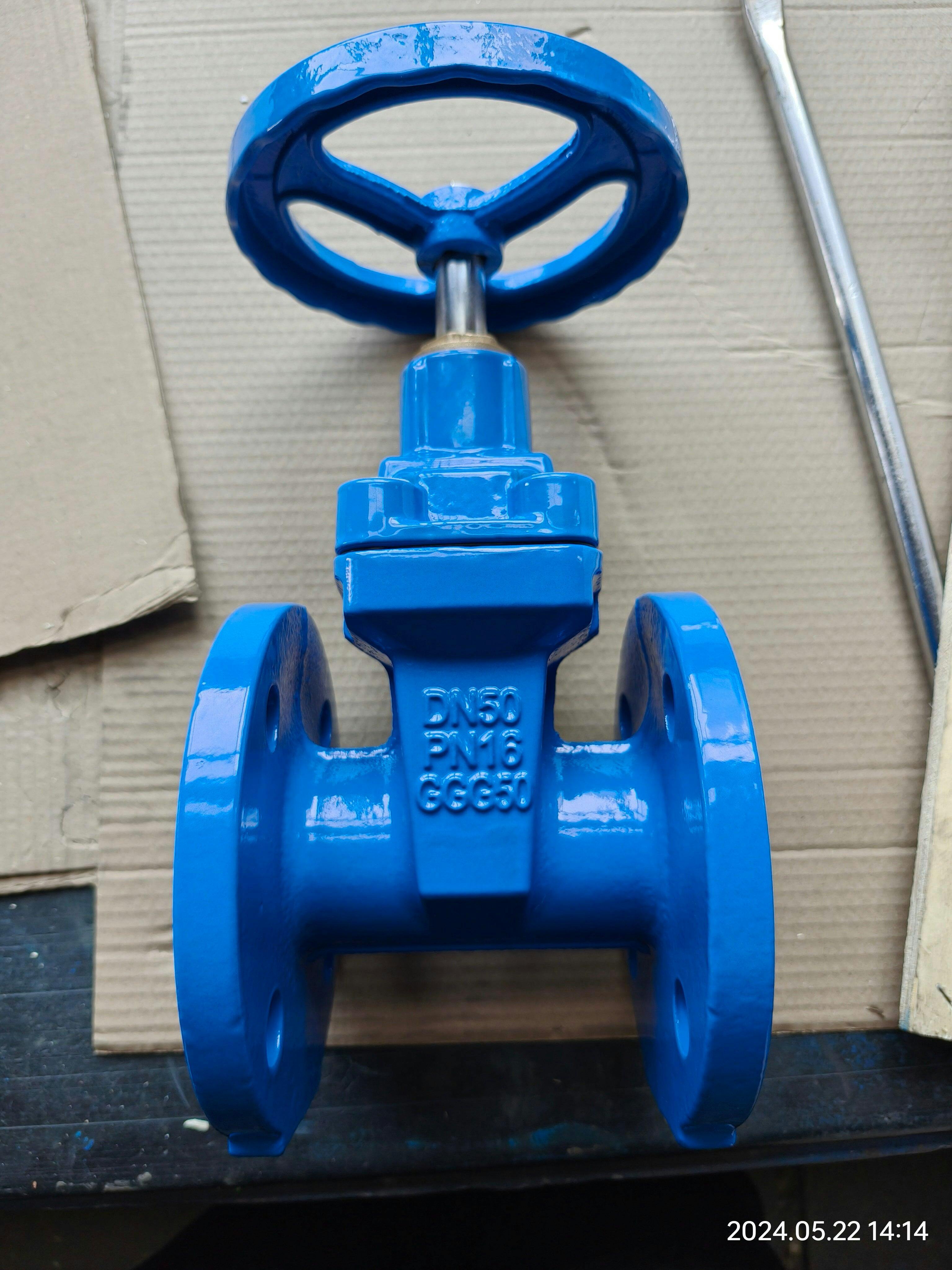

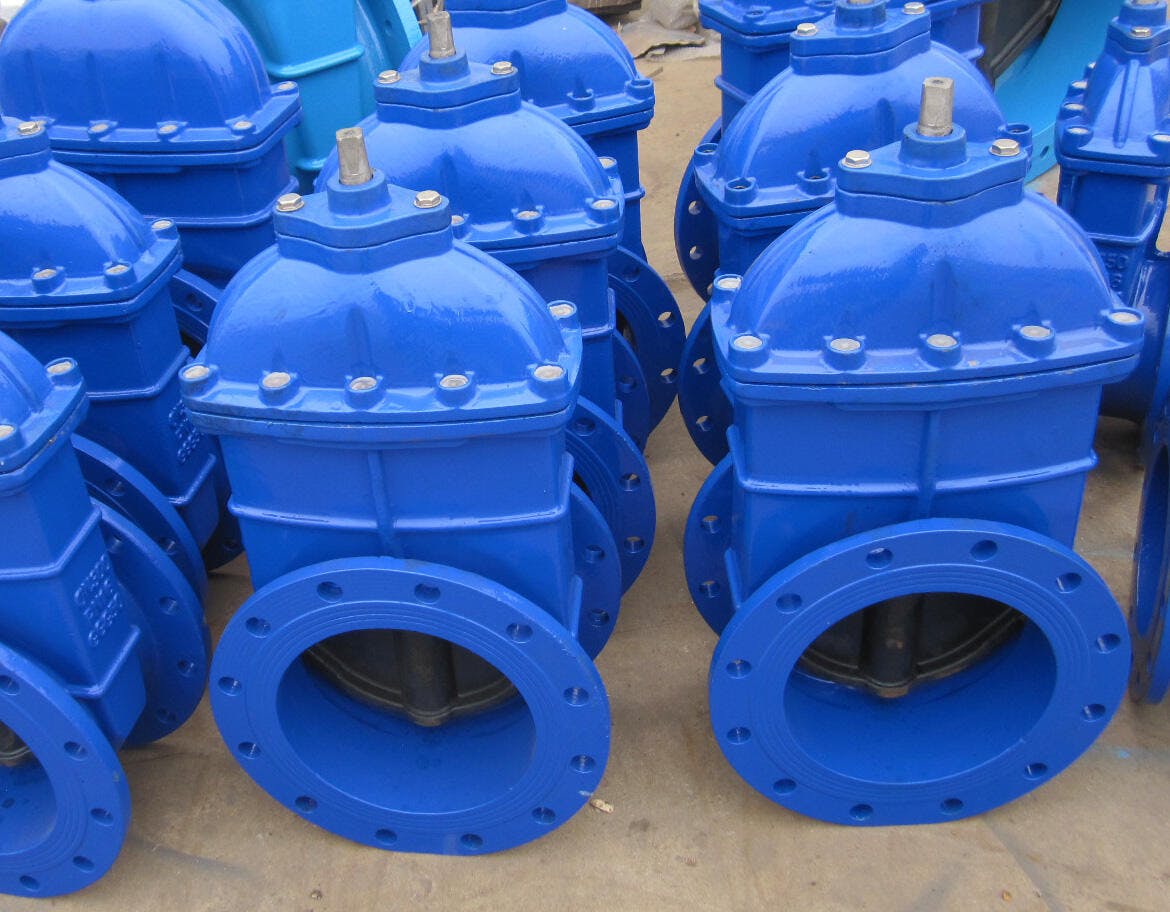

Non-Rising Stem Resilient Seated Gate Valve Introduction
This Non-Rising Stem Resilient Seated Gate Valve is a reliable and durable solution for controlling and directing the flow of fluid.This gate valve features a non-rising stem and resilient seat design for efficient and durable operation. With its reliable performance, it ensures long-lasting fluid control and minimal maintenance.And able to withstand high pressure and remains tightly sealed even after extended periods of use.Perfect for various industrial applications.
Non-Rising Stem Resilient Seated Gate Valve drawing
Standard of implementation
| Category | Specification |
|---|---|
| Type | Flange |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200 PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical / Petrochemical / Processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| Item | Part Name | Material |
|---|---|---|
| 1 | Body | Ductile Iron |
| 2 | Seat | EPDM |
| 3 | Shaft | SS416 |
| 4 | Disc | Ductile Iron |
| 5 | Wedge Nut | Brass |
| 6 | Bonnet Gasket | EPDM |
| 7 | Bonnet | Ductile Iron |
| 8 | Sealing ring | EPDM |
| 9 | Socket head screw | A2-70 |
| 10 | Oring | EPDM |
| 11 | Hand Wheel | |
| 12 | Stem Nut | A2-70 |
Dimensions:(mm)
